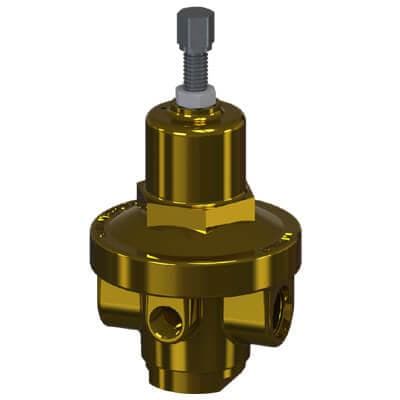

Series NR Regulator
Brand: Generant IncDesigned specifically for Large Vehicle NG Fueling Systems, the Series NR features our unique pre-formed Phosphorous Bronze Dual Diaphragm Stack providing increased sensitivity to changes in fuel demand over conventional flat sheet metal diaphragm designs.
The metal diaphragms also provide wider temperature operating conditions than elastomeric diaphragm designs.
An integral Stainless Steel filter screen aids in providing long service life. The Series NR has been tested and certified for use on Natural Gas Vehicle Fueling Systems to the rigid standards of the European Regulation ECE R110.
All NR Series Regulators are provided R110 Stamped.
Features- Specifically designed for NGV fuel systems
- Certified to European Regulation UN ECE R110
- Unique pre-formed multiple stacked phosphorous bronze diaphragms
- Hex head adjustment screw with locknut
- Inlet strainer/filter
Specifications
Brand
Approvals & Certifications
- E11 110R-000115 Class 1, Per ECE R110
Bearing Material
- Valve Stem Bearing: PCTFE, ASTM D1430
BSP Connection
- 1/2” BSPT Female
- 1/4” BSPT Female
Diaphragm Material
- Phosphorous Bronze
Enclosure, Body Material
- Brass
Flow Capacity
- Fail Open (1/2” NPT, BSPT, 8SAE): 2.9 Cv
- Fail Open (1/4” NPT & BSPT): 1.6 Cv
- Fail Open (3/8” NPT): 2.4 Cv
Materials of Construction
- Adjusting: 631 Stainless Steel (17-7PH), ASTM A313
- Bar Stock Component: Brass, ASTM B16
- Chamber: Forged Brass, ASTM 377
- Inlet Strainer/Filter: Stainless Steel
- Valve: HNBR (Hydrogenated Nitrile Butadiene Rubber)
NPT Connection
- 1/2” NPT Female
- 1/4” NPT Female
- 3/8” NPT Female
Nut & Bolt Material
- Locknut: Stainless Steel, ASTM A276
O-Ring Material
- HNBR
Pressure Range
- bar: 0 to 8.3
- kPa: 0 to 830
- psi: 0 to 120
SAE Connection
- 1/2” SAE Female
- 3/4” SAE Female
Screw Material
- Adjustment Screw: Stainless Steel, ASTM A276
Seat / Seal Material
- Diaphragm Seal: PTFE, ASTM D1710
- HNBR
Spring Material
- Valve Spring: 631 Stainless Steel (17-7 PH), ASTM A313
Supply Pressure - Maximum
- bar: 16
- kPa: 1,600
- psi: 232
Temperature Range
- -40° to 120° C (-40° to 250° F)
