Images are representations only.

MULTI::LYSER

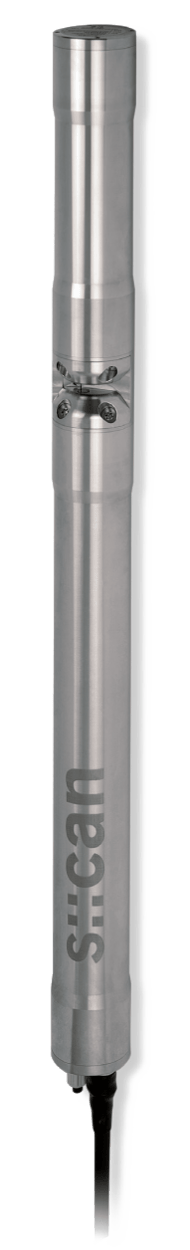

Series: Multi::lyser Spectrometer Probe for Drinking Water Brand: BM Technologies
Price
$1,241.00 CAD
Stock
50+ In Stock
Request Information

  • Water - Multilyser II (NO3-N, DOC, TOC, UV254, UV254f) for Surface Water

Specifications

Brand

Approvals & Certifications

  • EMC: EN 61326-1, EN 61326-2-3

Approvals & Certifications

  • EN 61010-1 for Conformity Safety

Cable Length

  • 3.28 to 24.61 ft (1 to 7.5 m) Fixed Cable

Communication

  • Interface to Scan Terminals: RS-485
  • Modbus
  • RTU

Consumption

  • Power Consumption: 20 W
  • Power Consumption: 4.2 W

Delay Time

  • 10 to 30 seconds

Display

  • Measuring Principle: Xenon Flash Lamp

Electrical Connectors

  • Interface to Scan Terminals: MIL Connector

Enclosure, Body Material

  • 316L Stainless Steel, 1.4401

Environmental Protection

  • Interface to Scan Terminals: IP67
  • IP68

Flow Rate

  • Flow Velocity: Max.

Media

  • Air
  • Water

Operating Pressure

  • psi: 0 to 45 (kPa: 0 to 300, bar: 0 to 3)

Operating Temperature

  • 0° to 45° C (32° to 113° F)

Power Supply

  • 11-15 Vdc

Pressure Range

  • psi: 0 to 159.5 (kPa: 0 to 1,100, bar: 0 to 11) for Integrated Pressure Sensor
  • psi: 145 (kPa: 1,000, bar: 10) for High Pressure

Principle of Operation

  • UV-Vis Spectrometry 190 to 720 Nm

Resolution

  • Resolution Temperature Sensor: 0.1° C (32.18° F)

Storage Temperature

  • -10° to 50° C (14° to 122° F)

Temperature Range

  • Integrated Temperature Sensor: -10° to 50° C (14° to 122° F)

Torque

  • Mechanical Stability: 30 Nm

Window Material

  • Optical Path Length 15 to 0.5 mm (Sapphire)
  • Optical Path Length 5 to 100 mm (Fused Silica)

Documentation

Data Sheets
