Images are representations only.

CARBO:LYSER

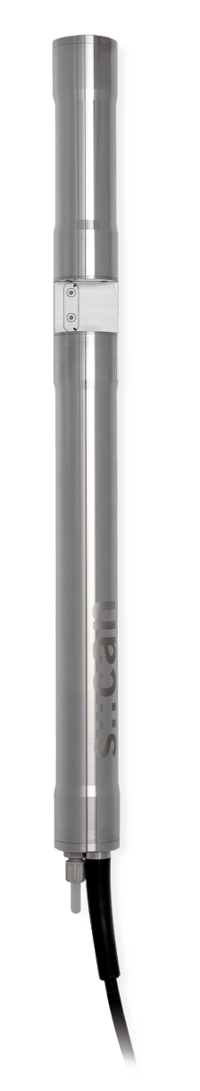

Series: Carbo:lyser Spectrometer Probe for Drinking Water Brand: BM Technologies
Price
$1,850.00 CAD
Stock
25+ In Stock
Request Information

  • Product - Surface Water
  • Water - Surface Water - Carbolyser II (Turbidity, DOC, TOC, UV254, UV254f)

Specifications

Brand

Approvals & Certifications

  • EMC: EN 61326-1, EN 61326-2-3

Approvals & Certifications

  • EN 61010-1 for Conformity Safety

Battery Life

  • 3-Years

Cable Length

  • 3.28 to 24.61 ft (1 to 7.5 m) Fixed Cable

Communication

  • Interface to Scan Terminals: RS-485
  • Modbus

Consumption

  • Power Consumption: 20 W
  • Power Consumption: 4.2 W

Delay Time

  • 10 to 30 seconds

Display

  • Xenon Flash Lamp, 256 Photo Diodes

Electrical Connectors

  • Interface to Scan Terminals: MIL Connector

Enclosure, Body Material

  • 316L Stainless Steel, 1.4401

Environmental Protection

  • Interface to Scan Terminals: IP67
  • IP68

Flow Rate

  • Flow Velocity: Max.

Measuring Range

  • 190 to 270 Nm for UV-Vis Spectrometry
  • 190 to 390 Nm UV Spectrometry

Media

  • Air
  • Water

Operating Pressure

  • psi: 0 to 45 (kPa: 0 to 300, bar: 0 to 3)

Operating Temperature

  • 0° to 45° C (32° to 113° F)

Power Supply

  • 11-15 Vdc

Pressure Range

  • psi: 0 to 159.5 (kPa: 0 to 1,100, bar: 0 to 11) for Integrated Pressure Sensor
  • psi: 145 (kPa: 1,000, bar: 10) for High Pressure

Resolution

  • Resolution Temperature Sensor: 0.1° C

Storage Temperature

  • -10° to 50° C (14° to 122° F)

Temperature Range

  • Integrated Temperature Sensor: -10° to 50° C (14° to 122° F)

Torque

  • Mechanical Stability: 30 Nm

Window Material

  • Optical Path Length 15 to 0.5 mm (Sapphire)
  • Optical Path Length 5 to 100 mm (Fused Silica)

Documentation

Data Sheets
