Images are representations only.

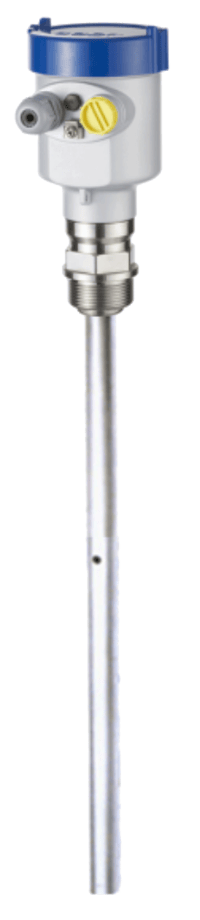

GW53

Series: GW53 Guided Wave Radar Level Instrument Brand: BM Technologies
Price
$673.00 CAD
Stock
50+ In Stock
Request Information

  • Type of Detecting Component / Material - Coaxial Pole Ø 28 mm / AISI 316L Stainless Steel
  • Process Connection - Thread G 1-1/2" A
  • Retained Seal / Operating Temperature - Viton / -30° to 150° C
  • Electronics - 4-20 mA / 198-242 Vac / HART (4-Wires)
  • Housing Material / Protection Class - Plastic / IP66
  • Wiring - M20 x 1.5
  • Display / Programming - YES

Specifications

Brand

Accuracy

  • ± 10 mm

Applications

  • Level Measurement of Liquid & Solid

BSP Connection

  • Antenna: G 1-1/2” A
  • G 2” A

Cable Entry

  • 1 x PG 13.5

Communication

  • Output Signal: HART

Consumption

  • Absorption: Max.

Current

  • Fixed Signal for Anomaly: 20.5 mA
  • Fixed Signal for Anomaly: 22 mA
  • Fixed Signal for Anomaly: 3.6 mA

Display

  • Resolution Display: 0.039” (1 mm)

Electrical Connectors

  • 1/2” NPT
  • M20 x 1.5

Enclosure, Body Material

  • AISI 316L Stainless Steel
  • Aluminum
  • Plastic PBT-FR

Environmental Protection

  • IP66
  • IP67

Frequency

  • 100 to 10,000 Hz
  • Resistance to Vibration: 10 to 150 Hz

Humidity

  • < 95 % Relative Humidity

Input

  • Input Voltage: 15-36 Vdc for Supply 2-Wires Version
  • Input Voltage: 230 Vac ± 10 % for Supply 4-Wires Version
  • Input Voltage: 24 Vdc ± 10 % for Supply 4-Wires Version

Materials of Construction

  • Pole: AISI 316L Stainless Steel

Measuring Range

  • Maximum

Measuring Time

  • Interval of Measuring: Approximately 1 second

NPT Connection

  • Antenna: 1-1/2” NPT Male

Operating Temperature

  • -40° to 250° C (-40° to 482° F)

Output

  • 4-20 mA, 2 or 4-Wires

Pressure Range

  • bar: -1 to 40
  • kPa: -100 to 4,000
  • psi: -14.5 to 580

Resistance

  • Maximum

Resolution

  • 6 µA

Seat / Seal Material

  • Seal: Kalrez
  • Seal: Viton

Storage Temperature

  • -40° to 80° C (-40° to 176° F)

Update Time

  • Integration Time: 0 to 999 seconds
  • Interval of Updating: Approximately 1 second

Documentation

Data Sheets
