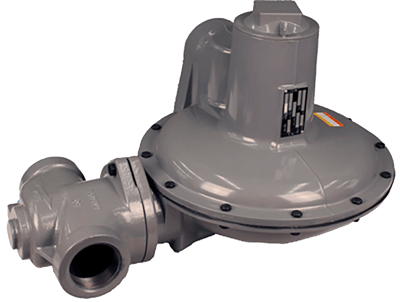

B38 Commercial & Industrial Regulator

Brand: Itron

Appropriate for large capacity commercial and industrial uses where inches of water column or pounds delivery is desired such as utility services, gas engines, burner trains, furnaces, and boilers.

The rapid response of the B38 is particularly well suited for applications where sudden on/off loads could cause shock problems.
Features
  • Interchangeable orifice
  • 78 square inches of diaphragm area
  • Spring internal relief valve assembly
  • Field interchangeable adjustment spring
  • Wide range of valve body sizes including NPT and flanged connections
  • 2-½" relief vent provides exceptional internal relief performance; replaces the need for external relief valves
Benefits
  • Controlled breather orifice size eliminates pulsation and provides normal action at low flows
  • Large Capacities achievable with orifices as big as 1-3 /8"
  • Unmatched overpressure protections with an Internal Monitor plus a internal relief valve all using only one easy to install valve body
  • Fast response protects equipment from shock damage
  • Internal Monitor is designed to meet D.O.T. safety standards

Specifications

Brand

Valve Body

  • 1-1/2” or 2” NPT
  • 2” Flanged
  • 3” Flanged

Orifice Size

  • 1/4”, 3/8”, 1/2”, 5/8”

Operating Temperature

  • -20° to 150° F

Body Material

  • Cast Iron

Orifice

  • Brass

Valve Seat

  • Buna-N

Valve Stem

  • Plated Steel

Diaphragm Material

  • Buna-N and Nylon Reinforcing Fabric
