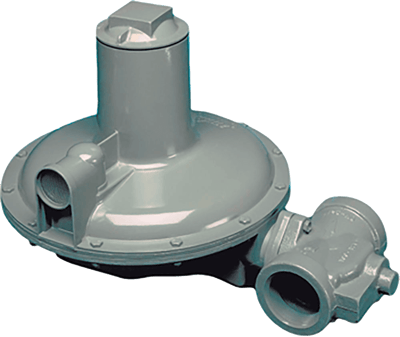

B34 Commercial & Industrial Regulator
Brand: ItronThe B34 is appropriate for many commercial and industrial uses such as gas engines, burners, furnaces, and boilers. The rapid response of the B34 is particularly well-suited for mid-range applications where quick on/off loads cause shock problems.
Features- Interchangeable brass orifice
- 78 in² of diaphragm area
- Spring-loaded internal relief valve assembly
- Field interchangeable adjustment spring
- Controlled size breather orifice eliminates pulsation and provides normal action at low flows
- Wide range of valve body sizes including NPT and flange connections
Benefits
- Economical
- Protects equipment from shock damage
- Large 12" diaphragm for better outlet pressure control
- Unmatched overpressure protection with internal monitor (IM) plus internal relief option
Specifications
Brand
Valve Body
- 1-1/4” NPT, 1-1/2” NPT, 2” NPT
- 2” Flanged
- 3” Flanged
Temperature Range
- -20° to 150° F
Body Material
- Cast Iron
Orifice Material
- Brass
Valve Seat
- Buna-N or Silicone
Valve Stem
- Plated Steel
Diaphragm Material
- Buna-N and Nylon
Outlet Pressure Range
- 3.0” w.c. to 28” w.c.
- 1 to 7.3 psig
