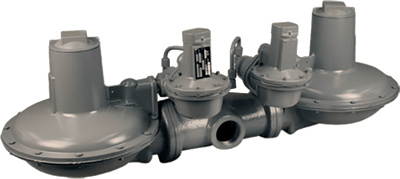

CL838 Twin Parallel Flow Dual Pilot-Loaded Regulator
Brand: ItronThe construction of the main regulator in the CL838 is the same as a standard B838 service regulator except the main springs are installed to close the valve. This main regulator is the same in either the CL838-1 or CL838-2 models.
Your selection of either model 1 or model 2 will be determined by the outlet pressure range of the pilot regulators.
Features- Parallel regulation with regulator and monitor in continuous operation
- Combined unit saves space and eliminates extra piping
- Designed to meet D.O.T. service regulator safety standards
- Accurate, reliable, versatile
Specifications
Brand
Size
- 2” x 2” NPT
- 2” x 2” Flanged
- 2 x 3” Flanged
- 2” x 4” Flanged
Vlave Body FF
- Screwed, 9”
- Flanged, 10”
Orifice Size
- 3/8”, 1/2”, 5/8”, 3/4”, 1”, 1-1/4”, 1-3/8”
Operating Temperature
- -20° to 150° F
Pilot Vent Size
- 3/4”
Body Material
- Cast Iron
Orifice
- Brass
Valve Seat
- Buna-N
Valve Stem
- Nylon
Diaphragm Material
- Buna-N Reinforcing Fiber
