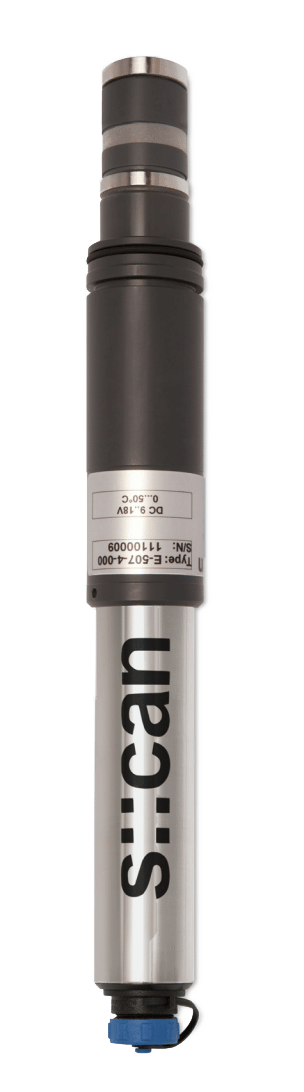

Chlori::lyser Electrochemical Sensor

Part Number: CHLORI::LYSER Brand: BM Technologies
Price
$2,313.00 CAD
Stock
50+ In Stock

Electrochemical sensor for monitoring free chlorine (Cl2 + HOCl + OCl-) or total chlorine (free chlorine + combined chlorine).
Features
  • S::can plug & measure

  • Measuring principle: amperometric (membrane covered)

  • Ideal for drinking water

  • Long term stable and lowest maintenance in operation

  • Replacement of membrane only once a year

  • Readings stable even at high fluctuations of pH, temperature and flow

  • Compensates fluctuations of pH in an unmatched way pH range from 4 to 10 FCl; pH range from 4 to 12 TCl (<5% per pH between 6 and 10/12 pH, <1% at <6 pH)

  • Low cross sensitivity to many surfactants

  • Cross sensitivities to chlorine dioxide, ozone can be compensated by using readings from spectro::lyser

  • Factory pre-calibrated

  • Mounting and measurement in a flow cell

  • Operation via s::can terminals & s::can software

  • Plug connection or fixed cable

  • Specifications

    Approvals & Certifications

    • EMC: EN 61326-1, EN 61010-1

    Cable Length

    • 24.61 feet (7.5 metres) Fixed Cable

    Communication

    • RS-485

    Consumption

    • Power Consumption: 1.3 W Typical
    • Power Consumption: 1.5 W, Max.

    Electrical Connectors

    • Plug

    Enclosure, Body Material

    • PVC
    • Stainless Steel

    Environmental Protection

    • IP67
    • IP68

    Flow Rate

    • Flow Velocity: 0.015 to 0.06 m/sec

    Measuring Range

    • E-507-1 & E-507-3: 0 to 2 mg/L FCI & TCI
    • E-507-2 & E-507-4: 0 to 10 mg/L FCI & TCI
    • pH: 4 to 10

    Operating Pressure

    • psi: 0 to 14.5 (kPa: 0 to 100, bar: 0 to 1)

    Operating Temperature

    • 0° to 45° C (32° to 113° F)

    Power Supply

    • 9-18 Vdc

    Principle of Operation

    • Amperometric

    Response Time

    • 2 minutes

    Storage Temperature

    • 0° to 45° C (32° to 113° F)
